Pumptronics C-Series AdBlue® Dispenser – Resale & Retail

A stainless steel cabinet AdBlue® dispenser that is MID approved for selling to the public and factory-verified, so it can go into service without on-site calibration.

MID & OIML approved – verified to Module D
25 L/min with ±0.25% accuracy
ATEX approved for forecourt hazardous areas
Serial or pulse link to fuel management systems

Request a Quote Talk to an Engineer

Description

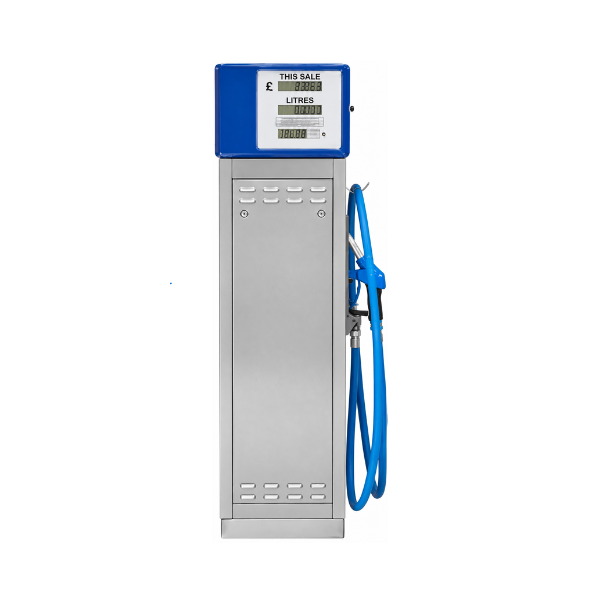

Pumptronics C-Series AdBlue® Dispenser – Retail and Resale

The Pumptronics C-Series AdBlue® dispenser provides accurate dispensing at 25 litres per minute. Available in retail and resale configurations, it features a stainless steel cabinet with a lockable access panel and a separate GRP electronics head.

Certified to MID and OIML standards and suitable for retailing AdBlue®, this robust cabinet pump is ATEX approved and suitable to locate within petroleum hazardous areas. Features a robust stainless steel cabinet with lockable access panel, and infra-red remote control to access the pump menus. Includes a self-contained GRP head for electronics and backlit LCD screen, with a counter shows up to 9,999.99L per dispensing, and 999,999L lifetime dispensed.

Key Features:

Available in resale and retail configurations
Choose your preferred nozzle when ordering
ATEX approved
Retail and resale units can be certified to meet requirements of MID
Dispensers can be verified in house to MID module D avoiding the requirements for on-site calibration
Communication with FMS via serial protocols
4 piston meter with +/-0.25% accuracy
Integration with existing FMS on non-resale is possible via the pulse output
25L/min dispensing speed
Textile braided 4m hose
Dimensions H 1430mm x W 400mm x D 440mm for MID and OIML

Stock Code	Description	Voltage	Max Flow	Accuracy	Amps	Motor
AB11LC/DISP	AdBlue® mono resale dispenser single sided display nominal, no nozzle	230V	25 L/min	+/- 0.25%	16A	1.1 kW
AB11LR/DISP	AdBlue® mono retail dispenser single sided display nominal, no nozzle	230V	25 L/min	+/- 0.25%	16A	1.1 kW

Shipping Information

Customised or made-to-order products may require additional time for assembly, testing and preparation before dispatch.

As lead times can vary depending on your chosen product specifications, please contact us for an estimated dispatch and delivery time before placing your order if timing is important.

Installation & Post Installation Services Available – 50% off for the 1st After Installation Services

Our certified engineers provide nationwide installation, calibration and ongoing maintenance for this product. Book installation with your order and receive 50% off your first after-installation service visit. Talk to an engineer for details.
